| Feature | Specification |
|---|---|
| Brand | Hikvision |

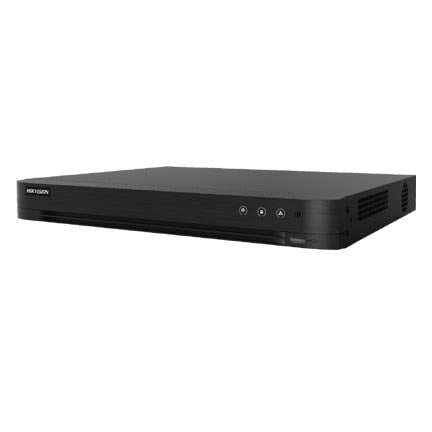

| Model | Hikvision IDS-7204HQHI-M1-S |
| Type | 04 Channel DVR |
| Video Input Channel (BNC) | 4 Channel |
| Video Compression/Format | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Video Output (VGA) | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Video Output (HDMI) | 1 channel, resolution: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz, HDMI/VGA simultaneous output |
| Video Recording Res. | 4MP, 3MP |
| Max. Video Recording Res. | 1080p |
| Video Bit Rate | 32 Kbps to 6 Mbps |
| IP Video Input | 1-channel (up to 5-channel) |
| Analog & HD-TVI Video Input | Up to 4-channel |
| Audio Input Channel (RCA) | 1 channel, RCA |
| Audio Compression | G.711u |
| Audio Output Channel | 1 Channel, RCA |
| Two way Audio | 1 Channel, RCA |
| Audio Bit Rate | 64 Kbps |
| Frame Rate (See notes for details) | Main stream: 4MP lite@15fps, 1080p/720p@15fps, 720p/VGA/WD1/4CIF/CIF@25/30 fps; Sub-stream: WD1/4CIF@12 fps, CIF@25/30 fps |
| Stream Type | Video, Video & Audio |
| Dual Stream Support | Yes |
| Synchronous Playback | 4-channel |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
| Number HDD Interface (SATA) | 1 SATA |
| Max HDD Support (GB,TB) | Up to 10TB capacity for each disk |
| Max. Storage Support | 10TB |
| Network Interface (RJ45) | 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Serial Interface | RS-485 (half-duplex) |
| USB Port | 2 x USB 2.0 |
| Remote Connections | 32 |
| CVBS Input | PAL/NTSC |
| Video Detection | Motion Detection 2.0 |
| Power Supply | 12 VDC / 1.5 A |
| Approx. Power Consumption | <-18W |
| Dimensions | 315 x 242 x 45mm |
| Weight (Kg) | <-1.16 kg |
| Feature | Deep learning-based motion detection 2.0 for all analog channels, Deep learning-based perimeter protection, H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression |
| Others | HDCVI Input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps; AHD Input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps; HDTVI Input: 4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps; CVBS Output Resolution: PAL: 704 x 57 |
