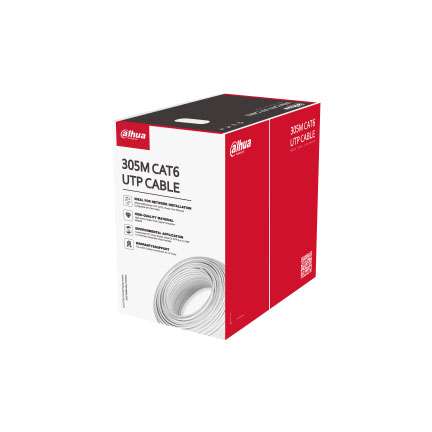

Name: Dahua PFM920I-6UN-C UTP CAT6 Cable Best Price in BD
Price: 13200 BDT
Availability: InStock

Dahua PFM920I-6UN-C UTP CAT6 Cable Best Price in BD

BDT 13,200.00 ~~BDT 13,500.00~~

Model: PFM920I-6UN-C

Conductor

Material

Oxygen free copper (99.97% purity)

Diameter

0.53 mm ± 0.01 mm

Insulation

Material

HDPE

Min. Average Thickness

0.21 mm

Diameter

0.95 mm ± 0.1 mm

Color (4 Pairs)

Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown

Separator

Material

Specification

Translucent 4.5 × 0.4 mm

Rip Cord

Material

Polyester

Specification

500D PFM920I-6UN-C

Sheath

Material

PVC

Min. Average Thickness

0.5 mm

Diameter

6.0 mm ± 0.3 mm

Color

White

Electrical

Max. DC Resistance of a Single Conductor

8.7Ω/100 m

Min. Insulation Resistance

5000MΩ·km

Max. DC Resistance Unbalance

2% (pair intra), 4% (pairs inter)

Dielectric Strength

No breakdown with 1KV DC for 1 min

Transmission

Characteristic Impedance

100 ± 15Ω

Near End Cross Talk

≥39.30 dB/100 m@250 MHz

Max. Attenuation

34.8 dB/100 m@250 MHz

Return Loss

≥17.3 dB/100 m@250 MHz

Mechanical

Tensile Strength

Sheath≥13.5 MPa, insulation≥16 MPa PFM920I-6UN-C

Elongation at Break

Sheath≥150%, insulation≥300%

Installation Bending Radius

>8 times of outer cable diameter

Conductor Elongation at Break

≥10%

Environmental

Shrinkage of Insulation

≤5%

Color Migration Resistance of Insulation

No migration

Sheath Tensile Strength and Elongation at Break after Aging

≥12.5 MPa, ≥100%

Low Temperature Bending Test

No cracking after the test

Heat Shock Test

No cracking after the test

Operating Temperature

–20°C to +60°C (–4°F to 140°F)

Installation Temperature

0°C to +50°C (32°F to 122°F)

Storage Temperature and Humidity

–10°C to +40°C (14°F to 104°F), <60% (RH)

Security

Vertical Fire Propagation Test

Comply with IEC 60332-1-2

Packaging

Cable Length

305.0 m (1000.66 ft) ± 1.5 m (4.92 ft)

Inner Carton Dimensions

416.0 mm × 412.0 mm × 220.0 mm (16.38" × 16.22" × 8.66") (L × W × H)

Packaging Method

305.0 m (1000.66 ft) a carton, one master carton with 2 inner cartons

Net Weight

≥10.5 kg (23.15 lb)

Gross Weight

≥11.5 kg (25.35 lb)

Compliance

Executive Standards

Q/DXJ 067-2019, EN50575-2014

Certification

CPR Eca PFM920I-6UN-C

Transmission Characteristics (100 m at 20°C) (328.08 ft at 68°F)
Frequency (MHz)	Phase delay ≤ ns	IL ≤ dB		TCL≥ dB﹡		EL TCTL≥ dB﹡		NEXT ≥ dB		PS NEXT ≥ dB
1	n/s	n/s		50.0		35.0		n/s		n/s
4	552.0	4.0		44.0		23.0		66.3		63.3
8	547.0	5.6		41.0		16.9		61.8		58.8
10	545.0	6.4		40.0		15.0		60.3		57.3
16	543.0	8.1		38.0		10.9		57.2		54.2
20	542.0	9.0		37.0		9.0		55.8		52.8
25	541.0	10.1		36.0		7.0		54.3		51.3
30﹡	540.6	11.0		35.2		5.5		53.1		50.1
31.25	540.0	11.3		35.1		n/s		52.9		49.9
62.5	539.0	16.3		32.0		n/s		48.4		45.4
100	538.0	21.0		30.0		n/s		45.3		42.3
200	537.0	30.7		27.0		n/s		40.8		37.8
250	536.0	34.8		26.0		n/s		39.3		36.3
Frequency (MHz)	EL FEXT ≥ dB		PS EL FEXT ≥ dB		RL ≥ dB		Delay skew ≤ ns		Zc(Ω)
1	n/s		n/s		n/s		n/s		n/s
4	56.0		53.0		23.0		45.0		100±15
8	49.9		46.9		24.5
10	48.0		45.0		25.0
16	43.9		40.9		25.0
20	42.0		39.0		25.0
25	40.0		37.0		24.3
30﹡	38.5		35.5		23.8
31.25	38.1		35.1		23.6
62.5	32.1		29.1		21.5
100	28.0		25.0		20.1
200	22.0		19.0		18.0
250	20.0		17.0		17.3
Note: Executive standard for the above parameters: Q/DXJ 067-2019 "n/s"=Not Specified PFM920I-6UN-C "﹡"=Unless otherwise customer stated the test results default to not shown in test report but comply with standard
