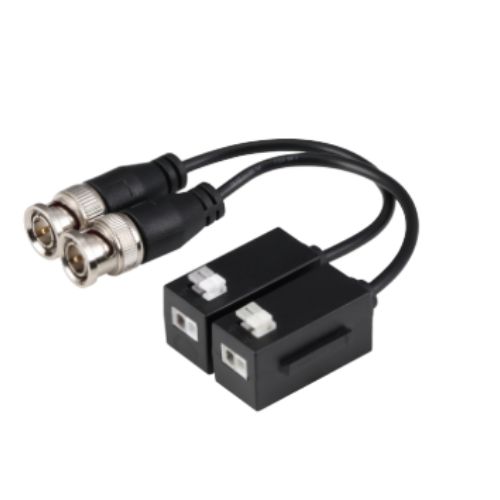

Name: Dahua 1-CH Passive Video Balun
Price: 300 BDT
Availability: InStock

Dahua 1-CH Passive Video Balun

BDT 300.00 ~~BDT 450.00~~

Dahua 1-CH Passive Video Balun
Real-time transmission over UTP CAT5E/6 cable
Passive, no need for power supply
Compatible format: HDCVI/TVI/AHD/CVBS

Back to Shop

Technical Speciﬁcation

Model

DH-PFM800-4K

Properties

Transmission Signal

1-CH

Network cable Type

UTP CAT5E/6 (material: CU)

Transmission Properties

HDCVI

720P: max.400m

(1312.34ft)

1080P: max.250m

(820.21ft)

4M/5M/4K : max.200m

(656.17ft)

TVI

720P: max.400m

(1312.34ft)

1080P: max.250m

(820.21ft)

4M/5M : max.200m

(656.17ft)

AHD

720P: max.400m

(1312.34ft)

1080P: max.250m

(820.21ft)

4M/5M : max.200m

(656.17ft)

Video Transmission Properties

Coaxial Video Connector

BNC-M

Connection Way

RJ45

Compatible Format

HDCVI/TVI/AHD/CVBS

Resolution

720P/1080P/4MP/5MP/4K

Protection

ESD

1a contact discharge electricity level 3

1b air discharge electricity level 3

Per: IEC61000-4-2

UTP Cable Connector

2KV(different-mode), 4KV(common-mode)

Per: IEC61000-4-5

Impedance

BNC Male Impedance

75 ohms

UTP Cable Impedance

100 ohms

Physical Properties

Weight

40g (0.09lb) (1 pair)

Dimension(LxWxH)

173.8mmx19.5mmx21mm (6.84”x0.77“x0.83”)

Shell

ABS

Color

Black

Environmental

Operating Temperature

-30℃~+70℃(-22℉~+158℉)

Operating Humidity

<95% RH

Storage Temperature

-40℃~+80℃(-40℉~+176℉)

Dahua 1-CH Passive Video Balun Price in Bangladesh

The Dahua 1-CH Passive Video Balun is a great way to increase the range of your CCTV system without requiring a power supply. It employs real-time transmission over UTP CAT5E/6 cable, allowing for clear and crisp video images up to 1,200 feet distant. The balun is also immune to thunder, static, and interference, ensuring that your video signal remains stable even in adverse situations.

What is the Price of the Dahua 1-CH Passive Video Balun in Bangladesh?

The latest price of the Dahua 1-CH Passive Video Balun is 300 BDT. You can buy the Dahua 1-CH Passive Video Balun from us. To buy this product, You can either buy it through our website or directly visit our office. Our Office Address: 51, Kazi Villa, 3rd Floor, Suvastu Arcade ICT Bhaban Goli, New Elephant Road, Dhaka-1205, Bangladesh. Contact Us: +88 01894-683430
