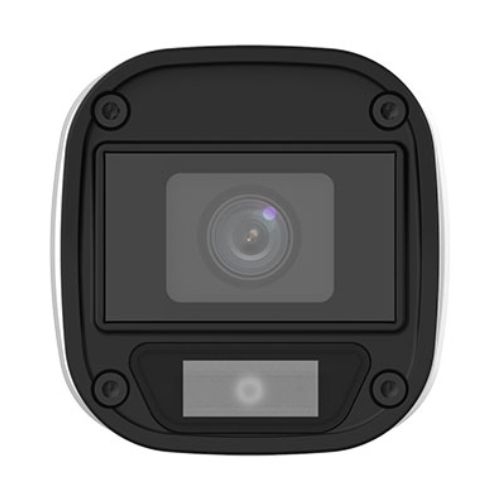

Features of the Uniview UAC-B115-F40-W 5MP ColourHunter HD Fixed Mini Bullet Analog Camera
Specification of the Uniview UAC-B115-F40-W 5MP ColourHunter HD Fixed Mini Bullet Analog Camera
| Brand | Uniview (UNV) |
| Model | UAC-B115-F40-W |
| Camera Type | Fixed Mini Bullet Analog Camera |
| Sensor | 1/2.7" Progressive Scan CMOS |
| Effective Pixels | 5 Megapixels (2880×1620) |
| Lens | 4.0 mm fixed focal length |
| Field of View (FOV) | Horizontal: 82.9°, Vertical: 46.1°, Diagonal: 100.0° |
| Minimum Illumination | 0.02 Lux (F2.0, AGC ON); 0 Lux with white light |
| White Light Illumination | Yes, up to 20 meters |
| Day/Night Mode | 24/7 full-color imaging |
| Wide Dynamic Range (WDR) | Digital WDR (DWDR) |
| Digital Noise Reduction | 2D DNR |
| White Balance | Auto and Manual modes |
| Exposure Modes | Global, BLC, HLC, DWDR |
| Flip Function | 180° Horizontal and Vertical flip |
| Video Output Formats | TVI, AHD, CVI, CVBS |
| Video Output Interface | BNC connector |
| Power Supply | DC 12V ±25% with reverse polarity protection and surge protection |
| Power Consumption | Max 2.4W |
| Operating Temperature | -30°C to +60°C (-22°F to 140°F) |
| Operating Humidity | ≤95% RH (non-condensing) |
| Surge Protection | 4KV for power and video output interfaces |
| Ingress Protection | IP67 (dustproof and waterproof) |
| Mounting Options | Wall, pole, corner, and pendant mounts |
| Dimensions | 142mm × 63mm × 65mm (L×W×H) |
| Weight | 145g (0.32lb) |
| Material | Plastic |
| OSD Menu Languages | 11 languages including English, German, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish |
| Certifications | CE-EMC, FCC, CE-LVD, CE-RoHS, WEEE |
| Warranty | 1 Year |
The Uniview UAC-B115-F40-W is a 5MP fixed mini bullet analog camera engineered to deliver vibrant, high-resolution surveillance for both indoor and outdoor applications. Equipped with a 1/2.7” progressive scan CMOS sensor, it produces clear 2880×1620 resolution video, capturing fine details with exceptional accuracy. This model features a 4 mm fixed lens, offering a horizontal field of view of approximately 82.9°, which is ideal for monitoring entryways, corridors, or smaller outdoor areas. The ColourHunter technology enhances low-light performance by combining intelligent image processing with built-in white-light illumination, allowing the camera to maintain full-color imaging even in challenging lighting conditions. The white-light LED provides visibility up to 20 meters, ensuring reliable night-time surveillance. The UAC-B115-F40-W includes digital wide dynamic range (DWDR) and 2D digital noise reduction (2D DNR), delivering balanced images in environments with high contrast or variable lighting. It supports multiple video output formats—TVI, AHD, CVI, and CVBS—ensuring compatibility with a variety of DVR systems. Built to withstand harsh conditions, the camera comes with an IP67-rated housing, offering dust and water resistance for outdoor use. Its compact design allows flexible installation on walls, ceilings, or corners, and it operates efficiently with a DC 12V power supply at a maximum of 2.4 W. In summary, the Uniview UAC-B115-F40-W combines 5MP high-definition imaging, full-color night vision, versatile video compatibility, and robust weatherproof construction, making it an excellent choice for homes, offices, and commercial security setups. The camera also comes with a 1-year warranty for added peace of mind.
The latest price of the Uniview UAC-B115-F40-W 5MP ColourHunter HD Fixed Mini Bullet Analog Camera in Bangladesh is 3,400 BDT. You can buy the Uniview UAC-B115-F40-W 5MP ColourHunter HD Fixed Mini Bullet Analog Camera with Solar Panel from us at the best price. You can either buy it through our website or directly visit our office. Our Office Address: 51, Kazi Villa, 3rd Floor, Suvastu Arcade ICT Bhaban Goli, New Elephant Road, Dhaka-1205, Bangladesh. Contact Us: +88 01894-683430
